- Open All Tools → Panel Schedule. Set the panel name, location, space count and numbering arrangement.
- Tap a circuit position. Enter its description, optional amp label and pole count, then save or use Save & next.
- Review grouped multipole entries and verify every position against the actual panel.
- Use Print / PDF and set the physical label dimensions. Print at actual size and check the fit before applying it.
WORKED EXAMPLE
A clear circuit description
Enter

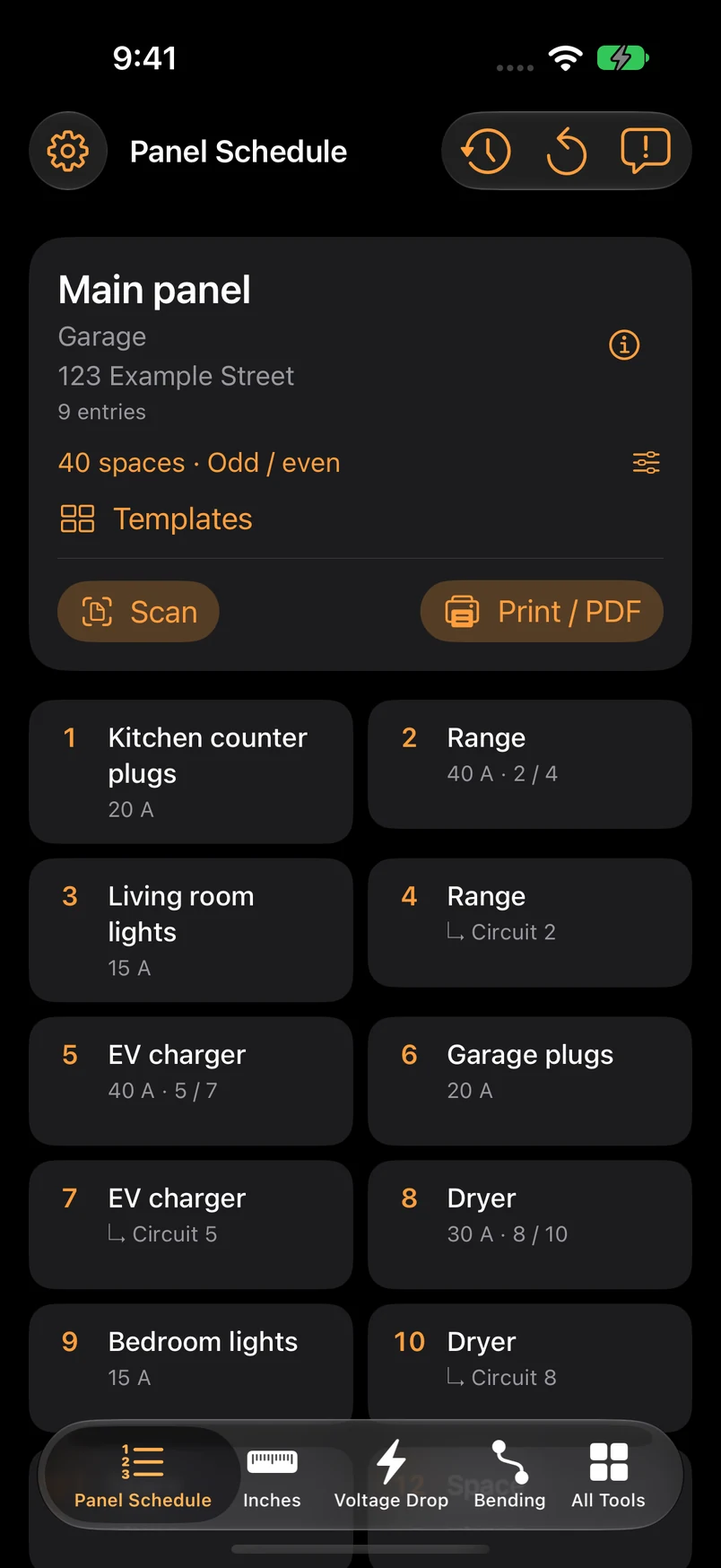

Use the 40-space odd/even layout. At circuit 1, enter “Kitchen counter plugs” and a 20 A label for a verified single-pole circuit.
Read the result
The directory associates that description and label with circuit 1. The 20 A entry records information; it does not calculate or approve breaker size.
Get more from it.
- Choose the actual panel numbering pattern before populating circuits.
- The Scan workflow can read a photographed directory on-device. Crop, review and correct recognized text before importing.
- Check physical print dimensions and printer scaling with a test sheet.
Know the limits.
- A directory is not a load calculation, phase-balancing analysis or protection design.
- Text recognition can misread labels. Independently identify and verify circuits using appropriate procedures.
Verify the inputs, applicable local requirements and real conditions. The app is a calculation aid and can contain errors. See our terms and safety disclaimer.
Common questions.
Can I scan an existing directory?
Yes. Use Scan, set up the image, read the text and review the proposed entries before confirming the import.
